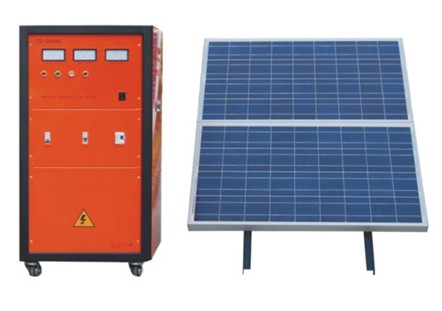

SP- 500L |
| Technical data: |
| Item No. |
SP-500WL |
| Capacity |
500VA |
| System voltage |
24VDC |
| Best output power everyday |
700WH |
| Inverter |
Output wave |
Pure sine wave |
| Output voltage |
AC110/220V |
| Output frequency |
50HZ/60HZ |
| Output current |
1.82A(220V) / 3.64A(110V) |
| Precision of output voltage |
±3% |
| Precision of output frequency |
±0.1% |
| False output wave of AC |
<3% |
| Overload ability |
120%,30 seconds |
| Invert efficiency |
>85% |
| Solar panel |
Pmax |
200W |
| Vmp |
35V |
| Imp |
5.7A |
| Battery |
Capacity |
24V100AH |
| Package data: |
| Part |
Size (L*W*H mm) |
Weight(kg) |
20' (pcs) |
40' (pcs) |
| Power box |
580*500*860 |
56 |
50 |
125 |
| Solar panel |
1200*850*85 |
23 |
| Solar panel bracket |
1660*85*75 |
14 |
| Battery |
366*420*275 |
58 |
| Load reference: |
| Name of Load |
Power(W) |
Quantity |
Working Time per Day (H) |
Working Days |
| Color TV |
65W |
1 |
4 |
3 days |
| Satellite TV Receivers |
25W |
1 |
4 |
| LCD Computer |
100W |
1 |
2 |
| Energy-saving lamp |
11W |
2 |
3.5 |
|
