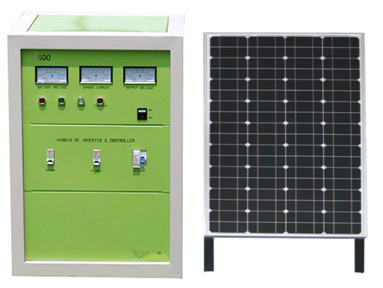

SP- 500 |
Technical data: |
Capacity |
500VA |
System voltage |
24VDC |
Inverter |
Output wave |
Pure sine wave |
Output voltage |
AC110/220V |
Output frequency |
50HZ/60HZ |
Output current |
1.09A(220V) /
2.18A(110V) |
Solar panel |
Pmax |
100W |
Vmp |
35V |
Imp |
2.9A |
Charger |
Charger voltage & current |
24V10A |
Battery |
Capacity |
24V100AH |
Package data: |
Part |
Size (L*W*H mm) |
Weight (kg) |
20' (pcs) |
40' (pcs) |
Power box |
615*525*1120 |
81 |
55 |
130 |
Solar panel |
1200*850*45 |
12 |
Solar panel bracket |
1460*85*75 |
13 |
Battery |
535*500*255 |
113 |
Load reference: |
Name of Load |
Power(W) |
Quantity |
Working Time per Day (H) |
Working Days |
Color TV |
65W |
1 |
4 |
3 days |
TV Receivers |
25W |
1 |
4 |
LCD Computer |
100W |
1 |
2 |
Lamp |
11W |
2 |
3.5 |
|
